KINETIC KITE-Dancing
Leaf
This kite was designed by Yukio Akiyama.
EList of
Materials
1) Sail : Plastic sheet or Ripstop or equivalent
2) Spar
: 2mm depth ~ 10mm width ~ necessary length (Bamboo or equivalent)
3)
Vertical Spar : 2mm depth ~ 10mm width ~necessary length(Bamboo or
equivalent)
4) Connecting bolt and nut : 3mm@diameter ~ 15mm
length
Each sail of wings are bonded with plastic adhessive or
soldering iron or adhessive tape.
Sails are fastened with plastic
adhessive or adhessive tape with spar or frame.
Horizontal spar and
vertical spar is connected by bolt and nut so as to make movement of
frames.
Details of the Plan

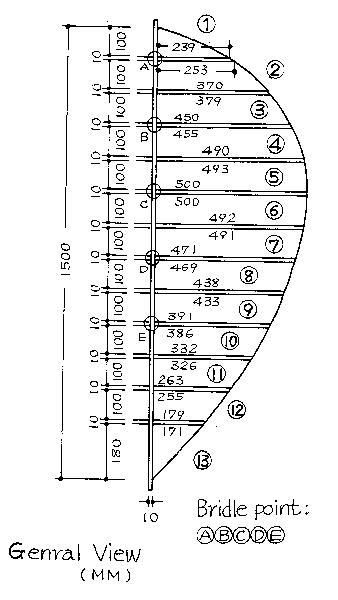

1. General View

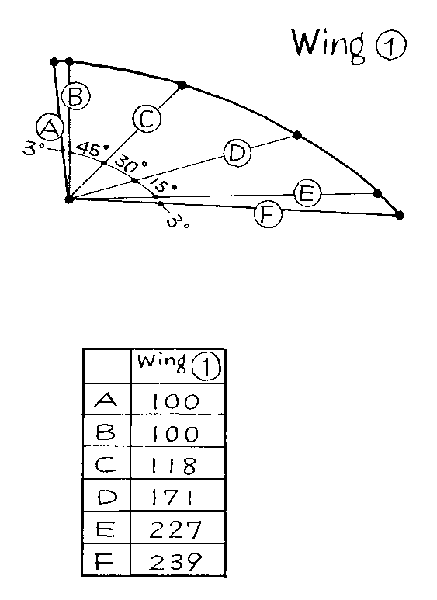

2. Wing 1

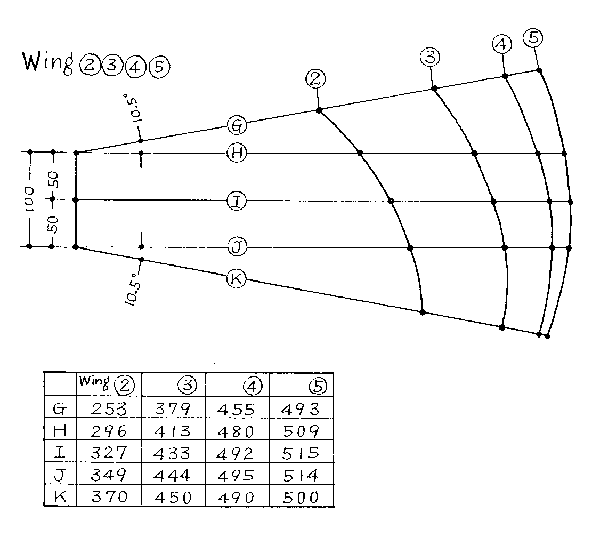

3. Wing 2,3,4,5

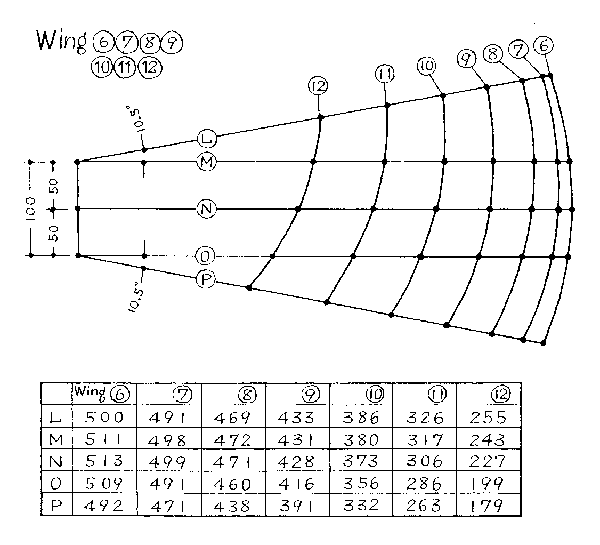

4. Wing 6,7,8,9,10,11,12

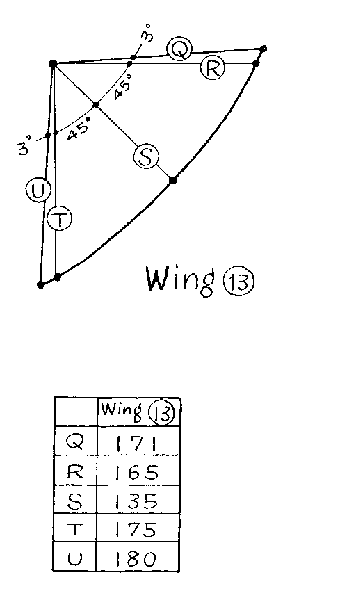

5. Wing 13
