Raaseri story


Raaseri Logo, Copyright by Peter Ulfheden Copyright © 1994...1999 Simo Salanne
Version 2.3, 22-Jul-99

Raaseri is a high performance dual line stunt kite designed for individual precision and ballet flying. As Raaseri flies rather slow, it has been used for pair and team flying, too. Raaseri will axel and do some other "radical tricks" but it is not a genuine trick kite.


To build a Raaseri, start reading about the copyright in the construction plan.


Raaseri was born in 1993 when I suggested to n@r.k to build a Tracer like kite as a winter project for Fanø '94 meeting. All five members of n@r.k built this dual line delta stunter, showing national colors of Finland, Sweden, Denmark, Norway and Germany.


n@r.k family portrait with Raaseris left to right: Simo Salanne, Peter Ulfheden, Esben Collstrup, Stein Hjelland and Bernhard Malle. (Image size 64 KB) (Photo:Peter Ulfheden)

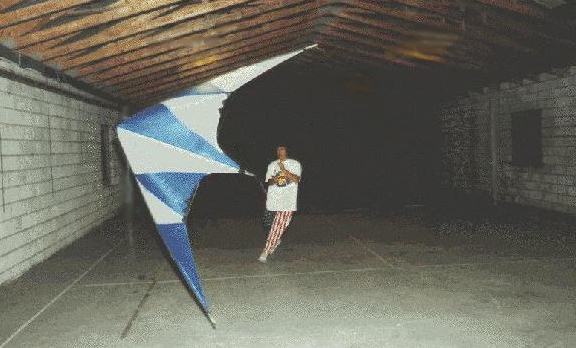

Raaseri prototype was flown by many rec.kiters indoors on Fanø '94. Photo of Andrew Beattie flying Raaseri prototype in tennis hall on Fanø (Image size 50 KB) (Photo: Michael Schneider)

Raaseri prototype had Icarex P31 sail and RCF-6 frame, weighting more than 250 g, not a real indoor kite - fortunately the kite didn't know it was too heavy, but flew!

After Fanø '94 I built a set of three Raaseris to cover the whole wind range:


In September 1994 World Cup took place in Le Touquet, France. (I was just a tourist there.) Winds were extremely strong, all top class teams had difficulties to handle them. First time I had opportunity to fly vented Raaseri-H in 25+ m/s winds. Together with Pierre Marzin we had fun to play with Raaseri-H in those grazy winds.

Next week in Dieppe, some asshole realized how good kite Raaseri-H was, and stole it from my kite bag, when I was flying my ballet demo with Raaseri-M on the main arena.

I flew Raaseri-L in European Cup '94, St. Moriz, both in individual precision and in ballet. I didn't score very well, but it's not the fault of the kite! Raaseri tracks and turns very precicely, even in slow speeds and on the edge of wind window. It's also radical enough to be used in freestyle and ballet.


Raaseri - what does it mean?

Rouben Ter Minassian made one page plan of Tracer like kite in 1992. He gave it a French name: T'a Soeur, which sounds close to 'tracer'. I continued the joke and named my version to Raaseri, which is a Finnish slang word for 'racer'. When I gave the name in 1993, I didn't guess Raaseri will be my primary competition kite on the following season(s).


For Fanø '95 n@r.k had a small batch of Raaseri pins made. They had the same colors as the kites in the n@r.k family portrait.


Raaseri vs. Tracer

I suppose Raaseri has somewhat same main dimensions as Tracer. (I have never took any "reverse engineering" measurements from a Tracer), but differs in:


Some of the comments on Raaseri

From: micha@ekpux2.physik.uni-karlsruhe.de (Michael Schneider)
Subject: raaseri report
To: Simo.Salanne@csc.fi (Simo Salanne)
Date: Tue, 3 Jan 1995 08:40:45 +0000 (WET)

Happy new year and always Smooth Winds from behind!

It's really time to report my experiences with the Raaseri.
Up to now I have built 3 raaseris. For the first one I used
a different panel design and made an error with the leading
edge:-( I enlarged the kite 2cm along the LE. I used a cheap
6mm cfk frame and got a not a very good kite, but had also
fun with it.

I built the second one exactly as you described and it flies
really great. The best stunt kite I ever had on my lines.

[ clip 8< - - - - - - - - - - ]

Smooth Winds
Micha



Date: Sat, 11 Nov 95 13:27:56 0000
From: Diego
To: Simo.Salanne@csc.fi
Subject: bravo!

Hi Simo!

My name is Nino Gualdoni and I am an italian kitebuilder and
kiteflyer. I have seen in your home page the description of
the raaseri and downloaded the plan in postscript format. Of
course i have built the kite and... it flies great, great
and great. Gratulations!

Maybe, raaseri will be the new light wind kite for my team
(The Rin Tin Team) instead of the Phantom. Really, you made
a great job.

Have smooth winds


Subject: raaseri baby
Date: Sat, 3 Feb 1996 00:52:02 +0100
From: eharter@dialup.francenet.fr (Francois Harter)
To: simo.salanne@csc.fi


Hi Simo

I'm Paris suburbs kite flier with tramontana, trix, skylite,
rev1.5 clone, aerial pseudo clone, home made roller, home
made 3/4 stunt delta (for my son), ultra mini mono delta
(for my daughter), eddy (for my wife), and strong dependence
to kite flying and making...

I'm pleased to announce you a new version of your original
raaseri. With your permission i'll name it "raaseri baby" :

   * 1.3 m wing span (0.6 reducing ratio)
   * P31 sail
   * CX1 leading edge
   * 2 mm rods
   * Topline 25 kg bridling
   * 12 kg spectra lines
   * around 45 gr weight
   * and a nice shape

My objective was to made an indoor/light wind small kite and
my first flight reveals a very good potential.(and maybe
somes tuning)

I exactly follow your bridling instructions but i'm not sure
that cross bridling fit to a so small kite like that. I'm
inexperienced with indoor/small kite flying but it's over
react to my actions.

I notice that the depth of the sail at wiskers was around 16
cm. Isn't it a little too much for 1.3m span ?

Tanks you very much to help me and for your plan on the net.

Francois Harter

Date: Wed, 11 Sep 1996 08:56:08 +0100
From: tom@minster.cs.york.ac.uk

[ clip... clip...]

ps Forgot to say that I got the mini-Raaseri finished and it
flies very well indeed.  It is remarkably stable for such a
small kite (about X4i size), and will axle, float and still
tracks very straight.   I was surprised but pleased with the
results.  I sparred it in 3mm in the end, and it seemed to
be a good all round compromise.   Thanks for your help with
the plans.

Photo of Tom's mini-Raaseri


Subject: First flight for the Raaseri
Date: 04 Jul 1997 11:05 EDT
From: "Anton Forte"
To: Simo.Salanne@csc.fi


Hi Simo

We finally got our Raaseri to a stage were My wife and I
could try it out for the first time.  The wind conditions
were very light 2-3 kph max.

The kite soared up into the sky first time, and flew very
well, at least as well as my Pro Comp Tramontana.  We are
very pleased.  My wife (who did all the sewing) was jumping
for joy.  This is a really great kite.

Thanks for all the help you give, and for a truely
fantastic kite design. This was the very first kite
we have made, we are very pleased with the results.

Thanks again for making it easy to make a really
great kite.

Anton Forte

Subject:      Re: Raaseri just wont play!
From:         gell0007@gold.tc.umn.edu (Matt)
Date:         1997/10/07
Newsgroups:   rec.kites


Phil,

I there is one problem, it is next to impossible to make that kite so
it works very well.  I am one of about 15 people i know who have made
this kite and our suscess rate is horrible.  So good lucky, ask Simo
he is very helpful.

8r


On Mon, 06 Oct 1997 22:46:15 +0100, Phil Hurman
wrote:

>I am a novice kite builder who has just completed a Simo Salonnen
>Raaseri. Whilst its a nice looking kite (very close to a Tracer) it
>refuses to play. All of the bridle legs are individually adjustable and
>I started with the legs set as per the instructions in the plans. By the
>way its a cross bridle.
>The kit is absolutely leaden. Very, very slow, over steers all over the
>sky and will not even fly in a moderate wind. As soon as it looses the
>wind it turns over and heads towards terra firma. No amount of bridle
>fiddling has produced any significant results and its still extremely
>slow. I think that the balance is wrong as when I walk towards the kite
>instead of hovering for a moment it just drops tail first and then turns
>towards the ground.
>The frame is Beman Pro comp14(5.5mm), the sail is standard weight
>ripstop.
>While I'm asking the "knowledge" out there.....I have been having
>problems getting neat results sewing the panel seams on the kites that I
>have been playing with. Looking at a Prism (very pretty kites) it has
>all of the seams glued together before sewing. What adhesive has been
>used, and can it be obtained here in the UK?
>
>Any help that anyone can give will be gratefully received.........I'm
>going mad with the unplaying Raaseri....!
>
>Phil.
>
>--
>Keep your back to the wind and your lines tight.....
> - Good Flyin -
>
>



Subject:      Re: Raaseri just wont play!
From:         marty_sasaki@harvard.edu (Marty Sasaki)
Date:         1997/10/07
Newsgroups:   rec.kites


In article <34395C26.64326B75@mindless.com>, Phil Hurman  writes:
|> The kit is absolutely leaden. Very, very slow, over steers all over the
|> sky and will not even fly in a moderate wind. As soon as it looses the
|> wind it turns over and heads towards terra firma. No amount of bridle
|> fiddling has produced any significant results and its still extremely
|> slow. I think that the balance is wrong as when I walk towards the kite
|> instead of hovering for a moment it just drops tail first and then turns
|> towards the ground.

Check the bridles again. I haven't seen the plans, but maybe they are incorrect
with the bridle you are trying to use.

In any case, what you describe is often an indication that the bridle is set too
low. Try shortening the top bridle line (the one that goes to the top spreader)
or lengthening the bottom two bridle lines. The outhaul (the line that goes from
the point where you attach your lines to the lower spreader) might be too short
as well. It's hard to know just by your description.

|> While I'm asking the "knowledge" out there.....I have been having
|> problems getting neat results sewing the panel seams on the kites that I
|> have been playing with. Looking at a Prism (very pretty kites) it has
|> all of the seams glued together before sewing. What adhesive has been
|> used, and can it be obtained here in the UK?

If you are using fabric for your kite, then you really don't need to use adhesive.
There are problems with some adhesives. When you are using films and film
laminates, like Prism does with most of their kites, you have to use adhesives,
otherwise the films will tear.

What you really need is just to practice sewing. After a while you will be able
to sew most things without help from adhesives.

|> Any help that anyone can give will be gratefully received.........I'm
|> going mad with the unplaying Raaseri....!

It's a fine kite once you get everything worked out.

--
Marty Sasaki



Subject:      Re: Raaseri just wont play!
From:         "Bernhard Malle"
Date:         1997/10/07
Newsgroups:   rec.kites


... clip ...

Simo has spent a considerable amount of time to put the plan
together and also to put it onto the WEB. And he was the
first to do so!

... clip ...

Bernhard



Subject:      Raaseri has come out to play!
From:         Phil Hurman
Date:         1997/10/12
Newsgroups:   rec.kites

Hi Everyone,

Just a short note to say a heartfelt thankyou to all who
responded to my "Raaseri wont play" post.

After reviewing the information offered I changed the
x bridle and created a dynamic item and added two more
stand-offs. Went out this afternoon to evaluate what,
if any, improvements had been made. Straight out of
the bag and into the air. Much lighter crisp performance,
still moderately slow but thats how Simo designed it to be.

This is a brilliant novice kite. Thanks to Simo for
putting the designs on the net. If anyone who responded
that they too had terrible trouble with this kite would
like more info and measurements of the changes made, give me
a shout. I must note that the original designs are by
Simo Salanne and as such acknowledge him as the owner
of these designs and hope that he doesn't mind me altering
a couple of minor items. Changes were forced probably
due to my crap construction techniques, but they are
getting better.

Again many thanks everyone.

Phil H.
--
Keep your back to the wind and your lines tight.....
 - Good Flyin -



Subject: Defence of Raaseri Kite
Date: Thu, 16 Oct 1997 02:08:17 GMT
From: alee@pobox.com (Allen Lee)
Newsgroups: rec.kites


Well I was all worried last week when all the comments were flying
about the Raaseri kite design by Simo Salanne.  I had just started
laying out the patterns for this kite when the discussion on this
group started. Needless to say I followed the threads fairly closely.
Well it all came out fine in the end, and my kite was finished
Wednesday October 15th, so I bravely took it to my favorite flying
area (the local community college socker fields), hooked up a set of
lines, took a deep breath and give it a pull. It jumped into the air
and flew great!!!!!!!! I was grinning from ear to ear, this was my
second attempt at building and first attempt at a dual line stunt
kite.  So if you are thinking of the Raaseri design GO FOR IT!!.
Its a very good kite. Mine is built as vented model and you can see it
at http://www.netsync.net/users/alee/kites.html.

Allen


Subject: Re: Raaseri just wont play!
Date: 17 Oct 1997 08:54:33 GMT
From: toj1@york.ac.uk (TO Jackson)
Newsgroups: rec.kites

Matt (gell0007@gold.tc.umn.edu) wrote:
: Phil,


: I there is one problem, it is next to impossible to make that kite so
: it works very well.  I am one of about 15 people i know who have made
: this kite and our suscess rate is horrible.  So good lucky, ask Simo
: he is very helpful.


Sorry, I have to disagree with this.  The Raaseri is one of the
most forgiving kite designs you could find to build, particularly
as it has a low-aspect ratio which seems to provide a lot of stability.

I have made three versions, each time I have changed the plan quite
randomly (remodelled trailing edge, different bridle) but still
ended up with a kite that flies beautifully from day one.

The design will tolerate a lot of error before it becomes
un-flyable.

Perhaps you folks are struggling with the cross-shunt bridle
set-up?


tom.



Subject: Re: Question about La Hembra from Stunt kites II
Date: 6 Nov 1997 11:42:36 GMT
From: pp@win.tue.nl (Peter Peters)
Newsgroups: rec.kites

> Robin Gilham  wrote
> in article
> <01bce9db$906e7940$6be503c4@algernon>...
>> Has anybody build this kite? How well does it fly.
>>
>> It seems like it is quite difficult to build, is it worth
>> the effort or will another easier to build trick kite be
>> better.
>>

I think I'd prefer the Raaseri.... Easier to build and
same but probably better performance..

Peter
--
Peter Peters, pp@win.tue.nl, http://www.win.tue.nl/~pp/
Like kites.... look at http://www.win.tue.nl/~pp/kites/



Subject:      Re: Raaseri query
From:         toj1@york.ac.uk (TO Jackson)
Date:         1997/11/07
Newsgroups:   rec.kites


Nick H-M (nhm.dgan@gtnet.gov.uk) wrote:
: Hi,

: I'm a newcomer (from England) and have been looking at the traffic in
: the newsgroup for a couple of weeks...  I've just finished building
: Raaseri (Thanks very much, Simo).  It seems a very forgiving design, and
: flies fast and quietly.  How is this kite rated, when compared with the
: designs in the shops?  How much would you have to pay for something

The Raaseri is a derivative of a very successful kite called
the Tracer, by Mike Simmons.  Raaseri is more refined, and has
a better bridle.  The Tracer was a very popular competition kite,
particularly in precision, as it tracks superbly (deep sail).

The Raaseri is certainly comparable to current many commercial designs
both in terms of performance and features.

It does trick fly, but it would not be considered a trick kite,
as it performs most tricks quite slowly (flat spins are a doddle
with the Raaseri).

The Tracer was about 150 UKp in it's day, more modern comparative kites
might be the Airmaster AM-1, which is closer to 200UKp.

It's a good all round kite, excellent for precision, but loses
out to more recent specialist trick or team kites.

tom.



Subject: Raaseri bridle types
From: michael.emery@stack.inet.fi (Mike Emery)
Date: 1999/01/05
Newsgroups: rec.kites


This is a description of three types of bridle that I have used on my
Raaseri. Each measurement is point-to-point and makes no allowance
for knots (esp. for the ACTIVE BRIDLE) or loops for attaching to the
frame. These tend to vary with material used and preferred knot
anyway. In each case the standard bridle attachment points as per the
plan are used.

I would stress that these are *MY* bridle settings and you may find
them not to your tastes, a fact that may be backed up by a
conversation I had the last time I was in the UK with a well known
(if nameless here) flyer trying out a Jester 2 with my dynamic
bridle:-

Mike:  What do you think then ?
Flyer: 'Snice.
    [pause]
Flyer: When will it stop spinning ?
Mike:  Soon. Soon.
    [another pause. Quite a long one actually]
Flyer: It hasn't stopped yet.
Mike:  Well....it's slowed down a bit.

Consider this fair warning. Personal taste is just that.

The references and acknowledgments are to those who I believe to be
responsible for the concept of the bridling system in question.

The original cross-shunt bridle for the Raaseri is by Simo Salanne,
designer of the kite.

CROSS STATIC BRIDLE (after Don Tabor, Mike Simmons et al)
Comment:
Basically as per the plan but I make no use of the shunt leg which is
normally loose anyway and I also make the outhaul one continuous
length rather than making each leg adjustable for ease of
adjustability and symmetry.

Inhaul x 2
----------
Note: Inhaul runs from lower spreader, across the spine and joins to
the outhaul at the tracer. This is the fixed line.

  Lower
 spreader                       Tracer
    ¦-----------------------------¦
    |                             |
    | <--------- 81cm ----------> |

Outhaul x 2
-----------
Note: Outhaul runs between the upper and lower spreader attachment
points on the leading edge. This is the adjustable line.
  Lower                                                       Upper
 spreader                         Tracer                     spreader
   LE                                                           LE
    ¦------------------------------------------------------------¦
    |                                 |                          |
    | <----------- 73cm ------------> |                          |
    |                                                            |
    | <------------------------ 117cm -------------------------> |

Tracers x 2
-----------
Note: Tracers are used to attach the flying lines to the bridle and
are loops of bridle line tied into an overhand knot.

              /
    =========@
              \

    |<------>|
      Enough

DYNAMIC BRIDLE (after Ray Bordelon)
Comment:
For a low aspect ratio kite like the Raaseri with so much pitch
stability some "fore and aft" moves like Fades, Flic-Flacs, etc. do
not come easily. The dynamic bridle allows a little instability to be
added. Too much dynamism in the bridle leads to a loss of that nice
Raaseri precision.

Inhaul x 2
----------
  Lower                            Outhaul
 spreader                 Tracer
    ¦---------------------------------¦
    |                        |        |
    | <-------- 77cm ------> |        |
    |                                 |
    | <----------- 89cm ------------> |

Outhaul x 2
-----------
  Lower                                                       Upper
 spreader                         Inhaul                     spreader
   LE                                                           LE
    ¦------------------------------------------------------------¦
    |                                 |                          |
    | <----------- 63cm ------------> |                          |
    |                                                            |
    | <------------------------ 116cm -------------------------> |

Tracers x 2
-----------

ACTIVE BRIDLE (after Andy Wardley)
Comment:
Not especially easy to tune and if I had the time and smooth winds
for the task I would work more on this but I am quite happy with it.
By making the lower legs on each side from one continuous piece and
making the upper leg adjustable in length you can tweak this bridle
quite fully (ie; more oversteer move Stabiliser point outwards along
lower leg, lengthen upper leg to increase pitch). However, this
bridle type is a manifestation of the fundamental interconnectedness
of all things and changing just one length to improve one flight
characteristic tends to mean more changes to gain back lost ground in
other areas that you didn't want changing...which means more changes
to other bits.....which....You get the picture.

Lower legs x 2
--------------

  Lower                                                     Leading
 spreader               Activator    Stabiliser               edge
    ¦------------------------------------------------------------¦
    |                    |            |                          |
    |                    |            |                          |
    | <---- 51cm   ----> | <- 26cm -> | <-------- 73cm --------> |
    |                                 |                          |
    | <----------- 77cm ------------> |                          |
    |                                                            |
    | <------------------------ 150cm -------------------------> |

Upper leg x 2
-------------

    Top            Activator      Tow  Lower
    ¦-----------------------------------¦
    |                |              |   |
    | <--- 35cm ---> | <-- 26cm --> |   |
    |                               |   |
    |                             ->|6cm|<-
    |                                   |
    | <------------- 67cm ------------> |

Activator x 2
-------------

    ¦--------------¦
    |              |
    | <-- 17cm --> |

Tracers x 2
-----------

Mike.

--
                       /\          | There is no such thing as wind
   O /D---------------/  \         | in Finland.
 __I/                 \  /         |
   I                   \/          | It is variable intensity,
  / \_                  +-+-+\     | semi-directional turbulence.
./    '       http://personal.inet.fi/koti/michael.emery



Raaseri construction plan
